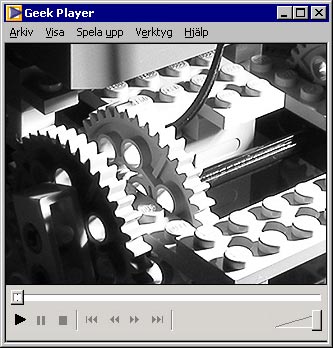

- Plotter 1 - 7.5 MB - DivX 5.02 |
![]() |

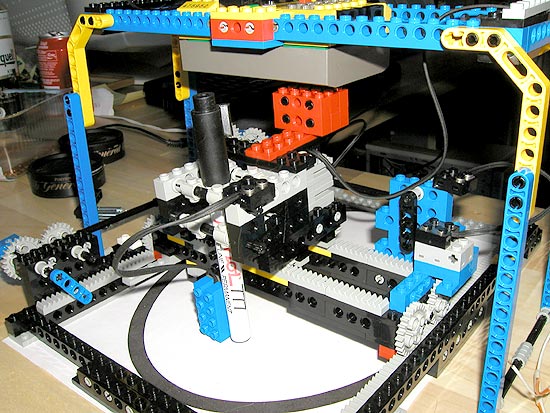

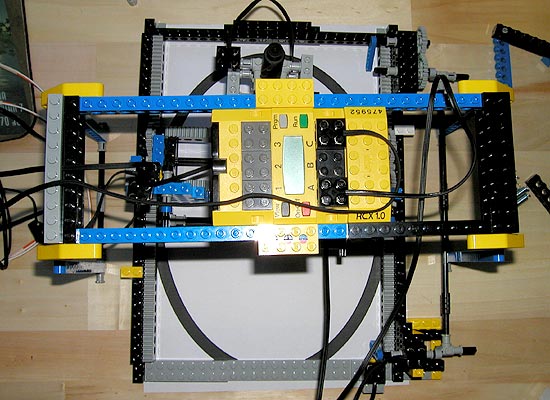

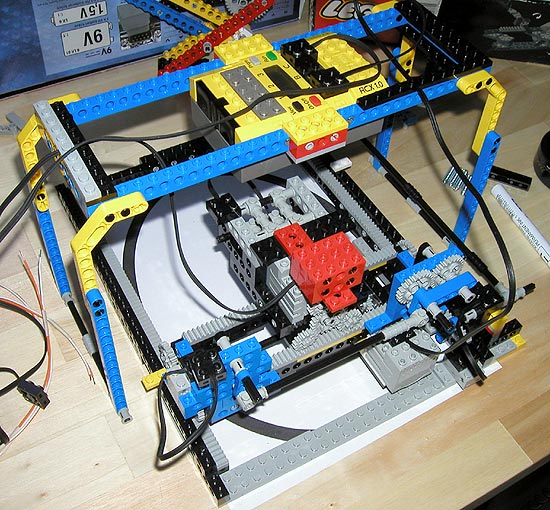

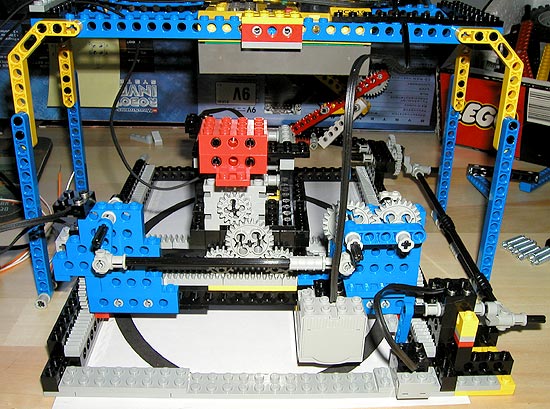

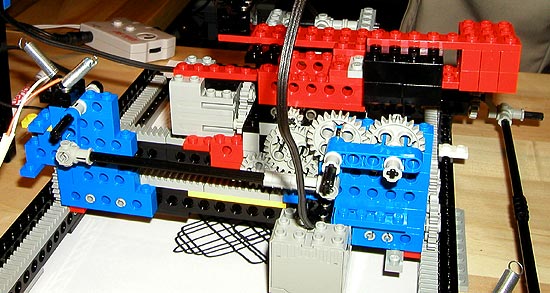

OK, so I wanted to try and build something that make something of it own. This is the result of that. It's basicly a plotter that can move in two directions X and Z. |
|
![]() |
But I had to make it more interesting, so instead of just making it go back and forth, I put in a light destector that "see" the black lines that the pen is drawing. I put a rule on the light detector to change the direction of the Z axle at a random time betwine 0.1 - 2 seconds. |
|
![]() |
I also put in detector at the end of each tracks end so the sled would not go outside its track. | |
![]() |
It's a bit tricky then you have 4 ends of track and only two pressure sensors. But this solution make it works... | |
![]() |

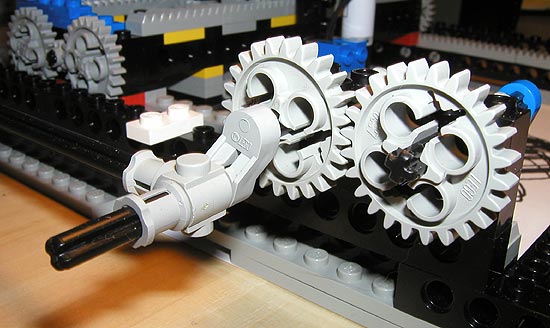

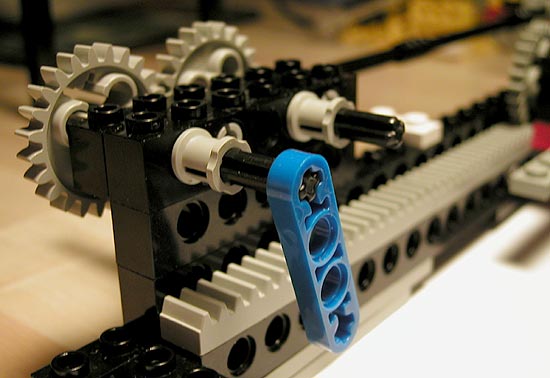

...The black piston is pushing this thing... | |
![]() |

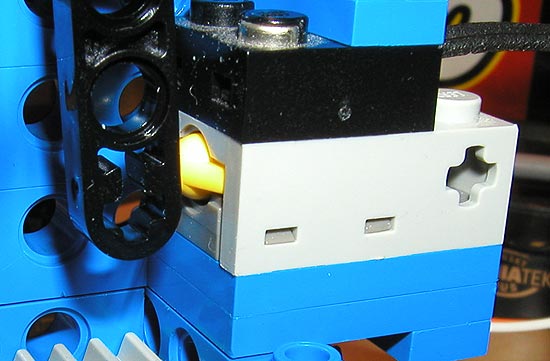

....That push this pressure sensors. | |
![]() |

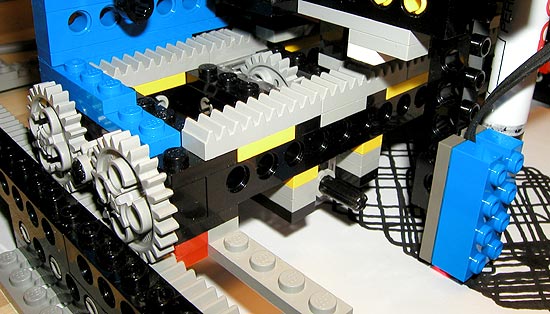

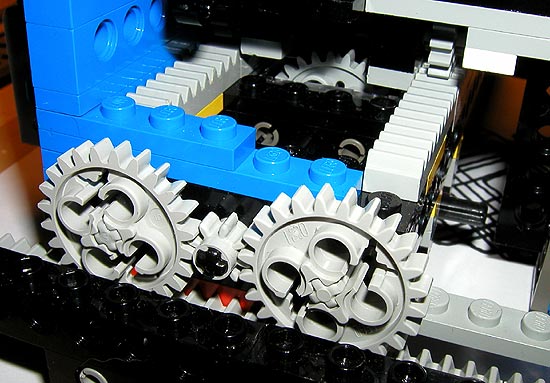

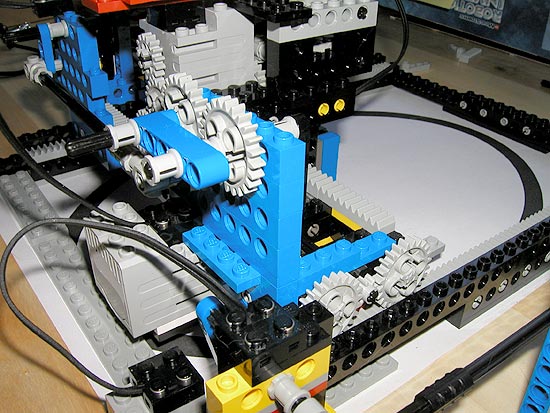

Have the same solution on the small sled. | |
![]() |

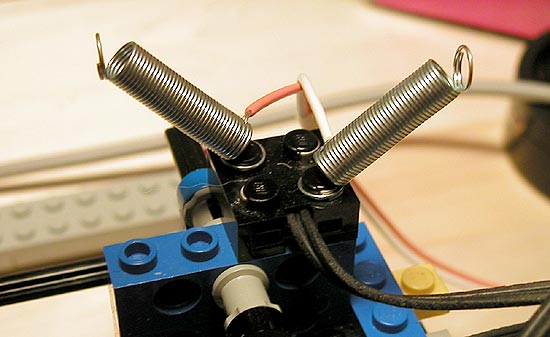

I dident have that many long cables that I needed so I came up with this solution. | |
![]() |
||
![]() |
||
![]() |
||
![]() |
||
![]() |

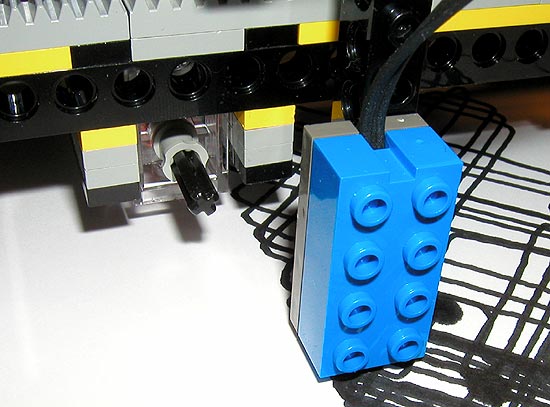

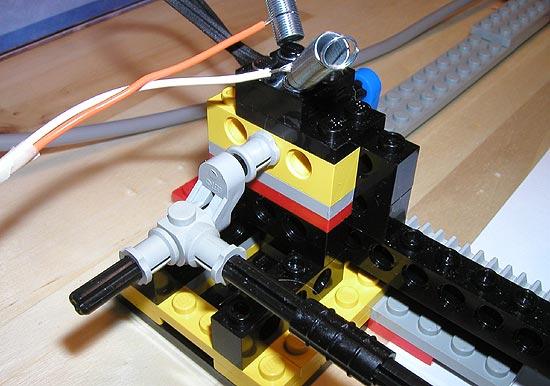

Light sensor | |
![]() |
||
![]() |
Here is the first test I did. The pen wasent haveing it's weight on, so it dident touch the paper all the time. | |
![]() |
Here are the second test run. | |
![]() |

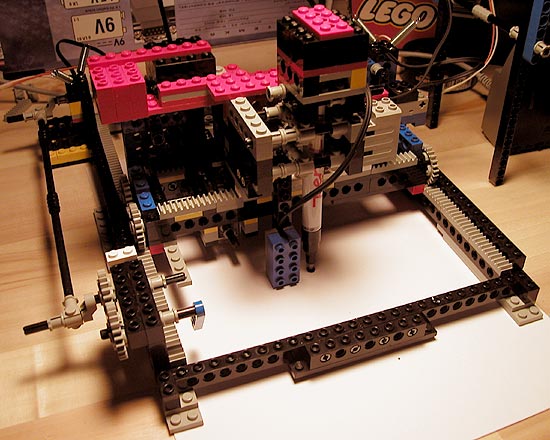

This is under it's building stage, had to do some modifications after this. | |
![]() |
||
![]() |
||
![]() |
||
![]() |
